601100
Max. pressure：50 bar
Peak flow： 35 L/min
Cavity：VC10-4
• Fast response
• Compact size
• Wet DC solenoid

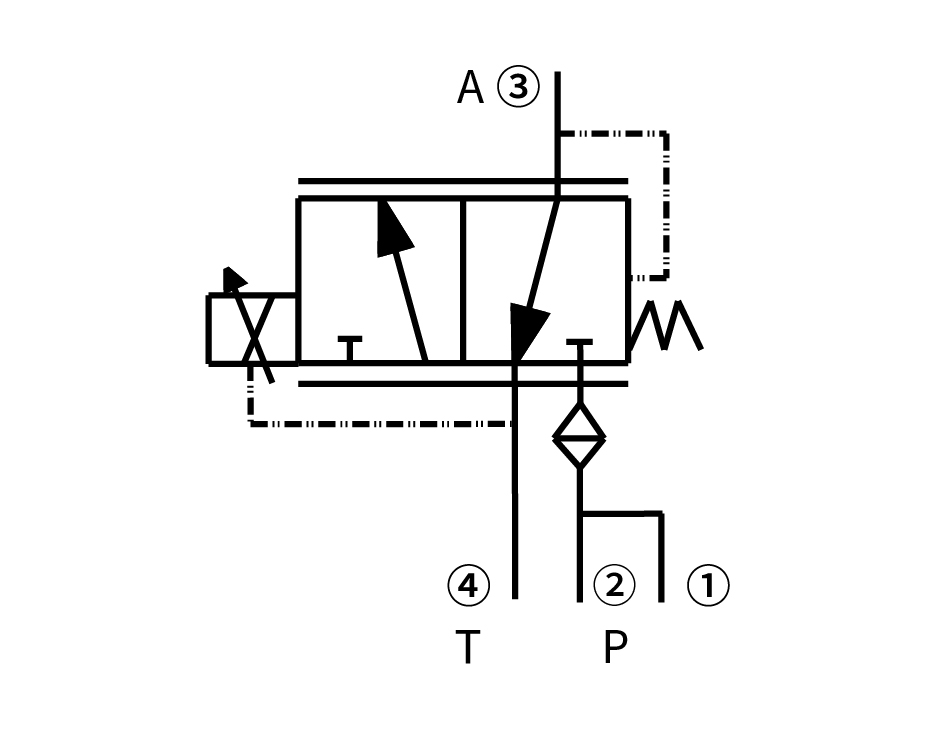

| Max. pressure (through ② ) | 50 bar (720 psi) | |
| Max. reduced pressure (through ③ ) | 20 bar（290 psi） | |
| Peak flow | 35 L/min（9.2 gpm） | |
| Internal leakage | 0.8 L/min @ 80% of set pressure | |

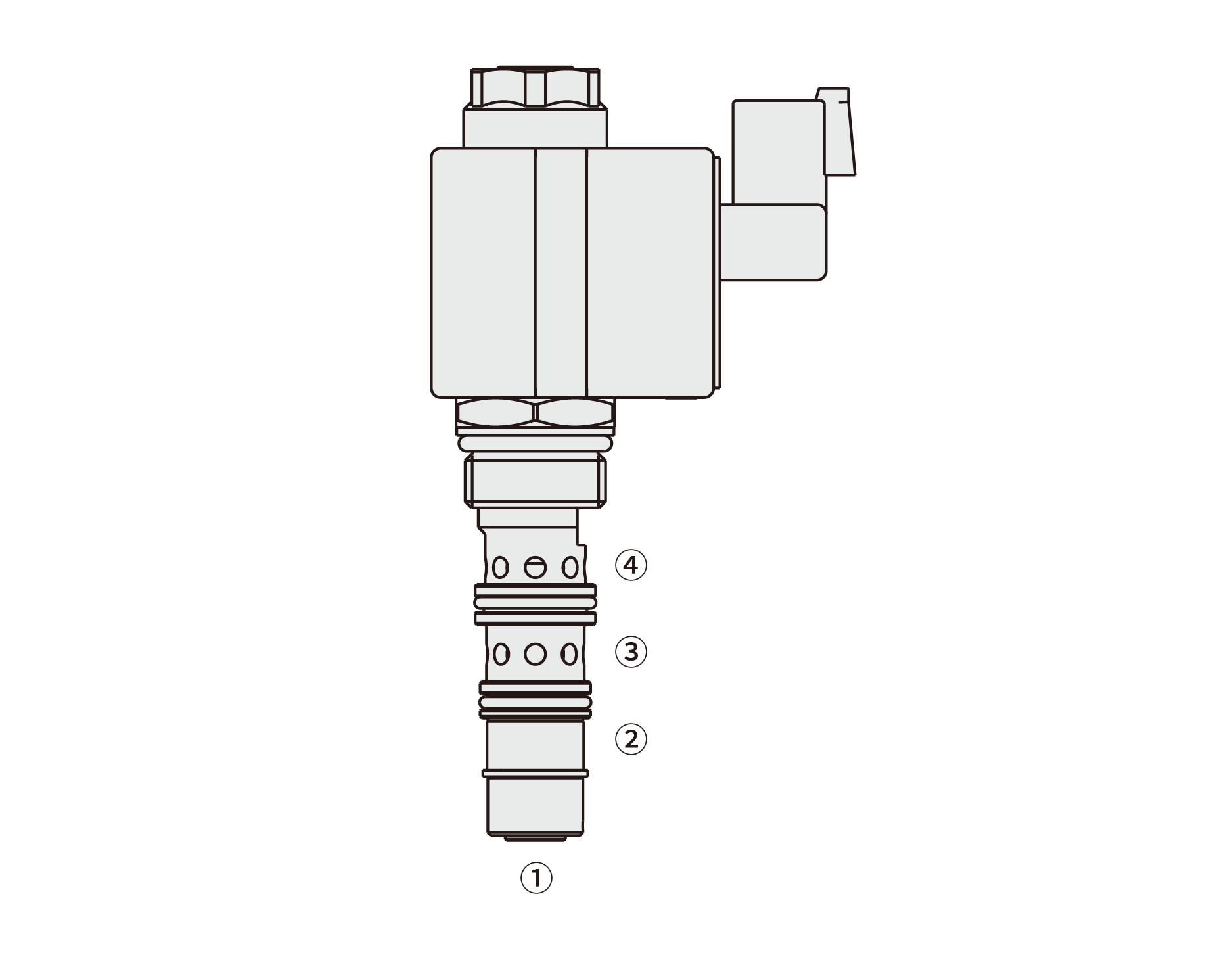

| Cavity | VC10-4 | |
| Fluid | Mineral-based or synthetics with lubricating properties | |
| Fluid temperature range ℃ | -54 to 107 ℃ (Polyurethane seals） | |
| -40 to 100 ℃ (Buna N seals) | ||
| -26 to 204 ℃ (Fluorocarbon seals) | ||
| Viscosity range | 7.4 to 420 mm2/s | |
| Degree of contamination | The minimum pollution level is ISO4406 level 20/18/14, and level 17/15/13 is recommended to prolong the service life | |
